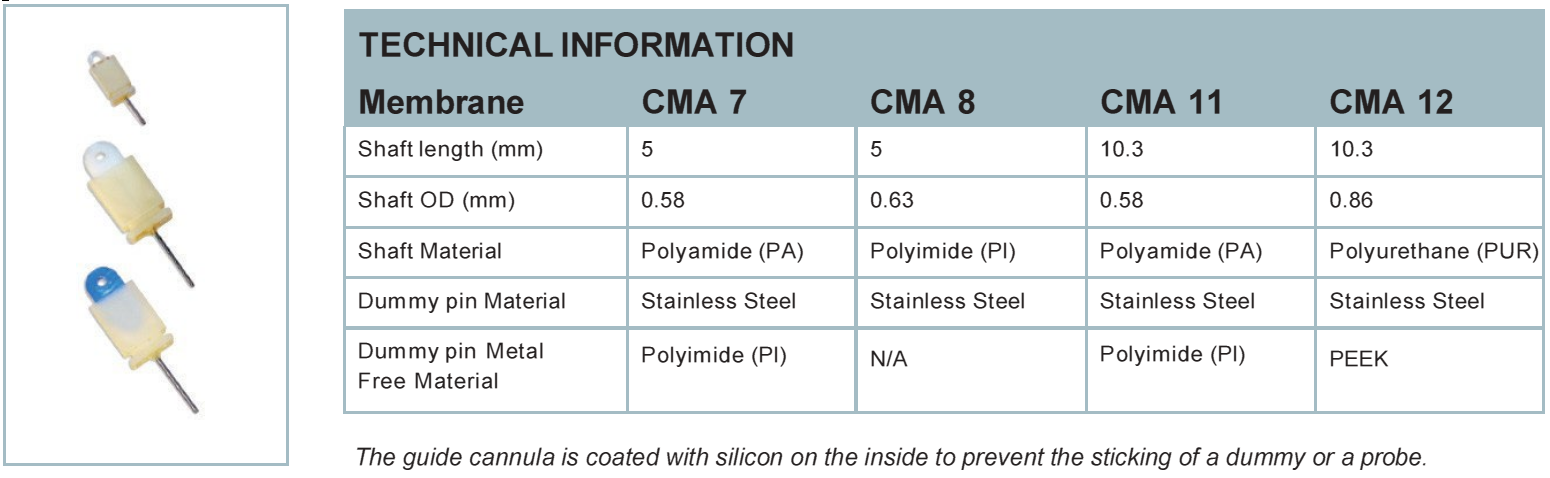

Silicon-coated on the inside to prevent sticking of a dummy or a probe. Can be mounted to a stereotaxic instrument using a standard probe clip.

• CMAP000137 CMA 7 Guide Cannula, pkg. of 3
• CMA8010773 CMA 7 Metal Free Guide Cannula, pkg. of 3
• CMA8012310 CMA 8 Guide Cannula, pkg. of 3
• CMA8309017 CMA 11 Guide Cannula, pkg. of 3
• CMA8011085 CMA 11 Metal Free Guide Cannula, pkg. of 3
• CMA8309024 CMA 12 Guide Cannula, pkg. of 3
• CMA8011205 CMA 12 Metal Free Guide Cannula, pkg. of 3

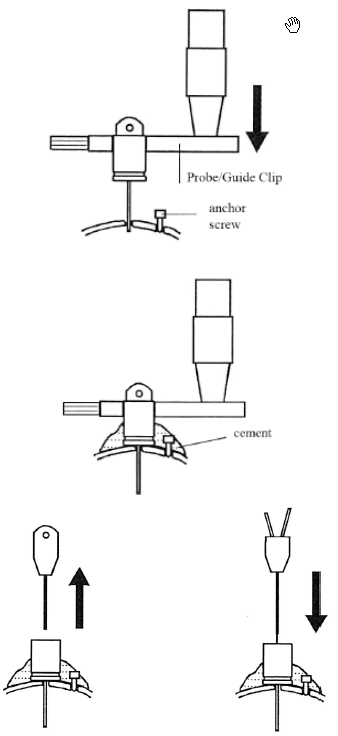

Instructions for the CMA 7, CMA 8, CMA 11, and CMA 12 Guide Cannula

1. Mount the guide in the clip and fix the clip to the Connecting Rod.
2. Attach the assembly to the micromanipulator of the stereotaxic frame (If necessary, the plastic cannula and the steel dummy may be cut to the desired length).
3. Drill a hole where the guide is to be implanted and small holes for the anchor screws. Screw the anchor screws in place.*
4. Lower the cannula of the guide slowly to the desired depth. To calculate implantation depth for intact guides, subtract the probe membrane length from desired depth for the probe.
5. The cement around the anchor screws and the guide.
6. Release the clip and if necessary, suture the skin. Fix the collar around the animal's neck.
7. The dummy is removed before inserting the Microdialysis Probe.
8. If used in the CMA 120 System for Freely Moving Animals, see more detailed instructions in the CMA 120 System Manual.
9. *In most cases you can secure the CMA 7 and CMA 8 Guide without using Anchor Screws. We recommend dental cement for securing the guide.

These instructions can also be applied to the custom-made CMA 7, CMA 8, CMA 11, and CMA 12 probe guides.
