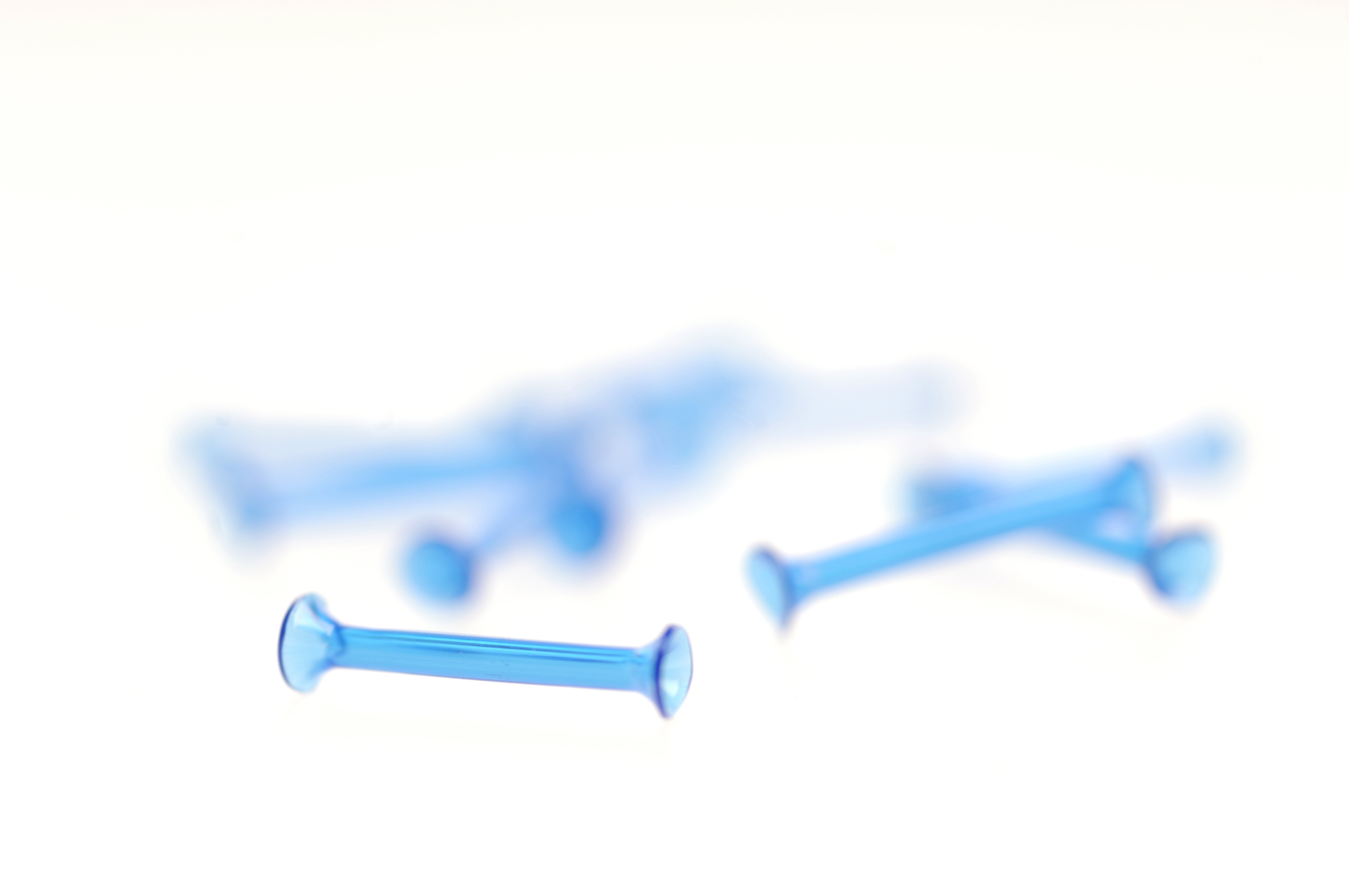

These adapters (item # CMA3409500) are used to form connections between various microdialysis system components including: FEP/PEEK tubing, probe inlet/outlet (CMA7, 8, 11, 12, 20, and 22 models), CMA swivels, CMA110 liquid switch, and CMA syringe needles. Adapters swell in 70% alcohol and shrink back in air to form a tight, low dead volume connection. Adapters are designed to work with OD 0.65-0.75 mm connections.

Dimensions:

OD: 1.08 mm
ID: 0.58 mm
Length: 12.5 mm - the finished adapter has a 9.7 mm length as each end is “coned” for smoother attachment to the FEP tubing.
